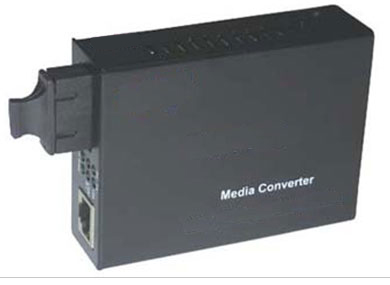

multi-mode fiber media converters
The media converter transform the transmission media of
Ethernet signal from CAT5/CAT6 to optical fiber.
Using media converter is a economical solution to achieve long
distance transmission base on current status.
Specification
1.Built in a 2-port switch:
--Pass all packets without address and CRC check (optional);
--Supports modified cut-through frame forwarding for low latency;
--Supports pure converter mode data forwarding for extreme low latency;
--Supports flow control for full and halt duplex operation;
--Bandwidth control;
--Forward 1600 bytes packet for management;
--Optional forward fragments.
2. Supports 100/1000Base-FX standard;
3.Built in 128Kb RAM for data buffer;
4.Supports auto MDI-MDIX function;
5. Supports link fault pass through function (LFP);
6. Supports for end fault function (optional);
7. LED display for link/activity, full/half, 10/100M
8. Support EEPROM configuration (optional);
9. the longest transmission distance reach 2 kilometers;
STANDARD
IEEE802.3 ETHERNET STANDARD
IEEE802.3u FAST ETHERNET STANDARD
Model
HY6110SB-20: multi-mode 10/100M1310nm dual fiber 1*9 MM 2Km
HY6010GMA: multi-mode 10/100M/1000M 1310nm dual fiber 1*9 MM 0.55Km

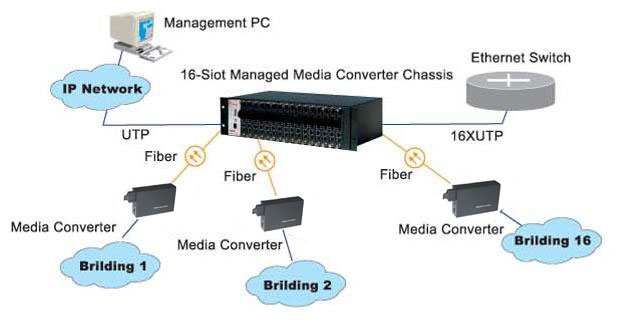

Solutions
.
Model
HY6110SB-20: multi-mode 10/100M1310nm dual fiber 1*9 MM 2Km
HY6010GMA: multi-mode 10/100M/1000M 1310nm dual fiber 1*9 MM 0.55Km
