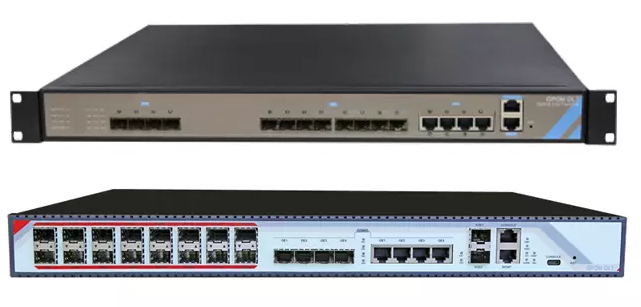

 OEM 4-8 PON Gpon/ OLT


GPON OLT with high performance
The 4-8 Pon GPON OLT is a small capacity and enhancement mode cassette GPON OLT, which complies with the relevant standards of ITU-T G.984/G.988 and FSAN.
4 -8 GPON ports, possessing super GPON access capacity
each GPON port supports the splitting ratio of 1:128 . The product is in compact design and convenient for flexible using, easy to deploy with high performance.It can meet the requirements of equipment performance and compact volume of the room environment.
It can also satisfy the requirements of the access network and enterprise network that enhancing the network function, improving the reliability and reducing power consumption. The product is suitable for the "triple play" service,

the resident of optical access network, video surveillance network, enterprise network and the Internet of the network applications.
It has carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management,
maintenance and monitoring capability, abundant service features and flexible network mode. GPON OLT 8PON can be used with network management system
so as to provide users with the perfect solution..




Specification






Item

 4PON GPON OLT

8PON GPON OLT

Management

 Rack

Type

1U 19-inch standard box

Slot

1*10 Gigabit uplink card slot
2 power module slot

Uplink Port

Copper

4*10/100/1000M auto-negotiable

SFP

8 SFP slots(1000BASE-TX interface)

4 SFP interfaces

10GE card

2 SFP+ (optional)

PON Port

Quantity

4

8

Physical interface

SFP slot

Interface type

ITU-TG.984.2 Class B+/Class C+

Max splitting ratio

1:128

Management port

1  10BASE-TX out band port

1  CONSOLE local management port

PON port attribute

Transmission distance

20KM

Port rate

Downstream: 2.5Gbps      Upstream: 1.25Gbps

Wavelength

Forwarding: 1490nm       Receiving: 1310nm

Interface type

SC

Fiber type

9/125μm SMF (Single Mode Fiber)

Light transmission power

Class B+  +1.5~+5dBm
Class C+  +3~+7dBm

Receiving sensitivity

Class B+  -28dBm
Class C+  -30dBm

Saturation power

Class B+  -8dBm
Class C+  -12dBm

Network management method

Support CLI,SNMP,TELNET

Business capabilities

Support for state monitoring, configuration management, device log, device upgrades, device management, user management.

Layer-2 switch configuration: such as Vlan, Trunk, RSTP, IGMP, QOS and so on.

PON management function: OLT authentication, DBA template, service template, line template and so on.

Backplane Bandwidth

With 10GE card:84G      Without 10GE card:44G

96G

Size

440mm(L)*391mm(W)*44mm(H)

Weight

4kg

Power supply

220VAC

AC: 90V~240V,47/63Hz

-48DC

DC:-36V~-72V

Maximum power

50W

70W

Operating Environment

Working temperature

0~50℃

Storage temperature

-40~85℃

Relative humidity

5~90% (Non-condensing)

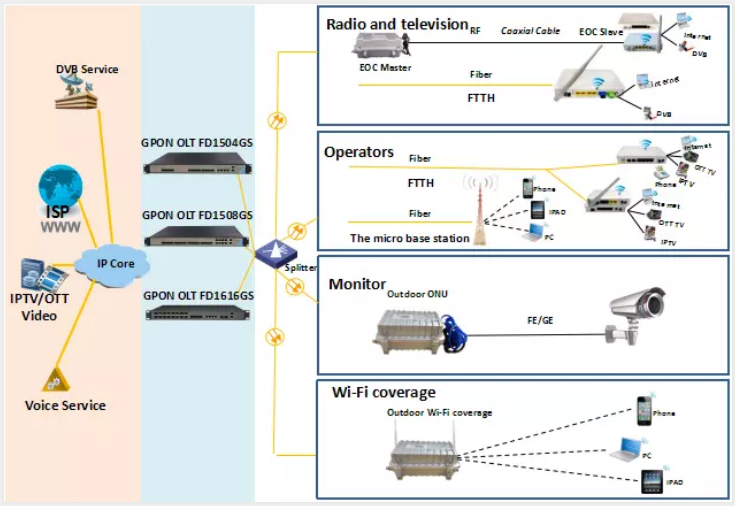

Solutions



.

Model

 4-8 PON GPON OLT



4-8 PON Gpon  OLT.
