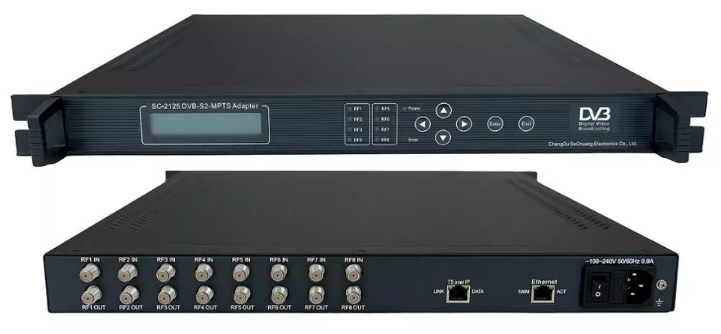

IP (MPTS) Satellite Receiver


8×DVB-S/S2 to 8×MPTS IP Gateway can receive 8×DVB-S/S2 signal (RF) transponders and output 8×MPTS IP transport stream (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.


Features

1. 8×DVB-S or 8×DVB-S2 (optional) input

2. 8×MPTS (Gigabit/Unicast/TS over IP/UDP) output

3. Support max 188×7 package

4. LCD/Keyboard control by front panel and network management by Ethernet.






Specification

Technical Specification

Input

8×RF

F-head

Demodulation Mode

DVB-S/S2QPSK/8PSK

Symbol Rate

1~45 Mbaud/s

Frequency Range

950MHz~2150MHz

Error Correction Coding

RS coding 188/204

Output

IP

8×MPTS/Unicast/1000BASE-TTS over IP/UDP

Control

NMS (Ethernet port, RJ-45), Keyboard + LCD

General Features

Size

482mm×410mm×44mm

Temperature Range

0~45°C (Operation); -20~80°C (Storage)

Power

100-240VAC50Hz, 25W
















Solutions





.

Model

  IP (MPTS) Satellite Receiver



IP (MPTS) Satellite Receiver
