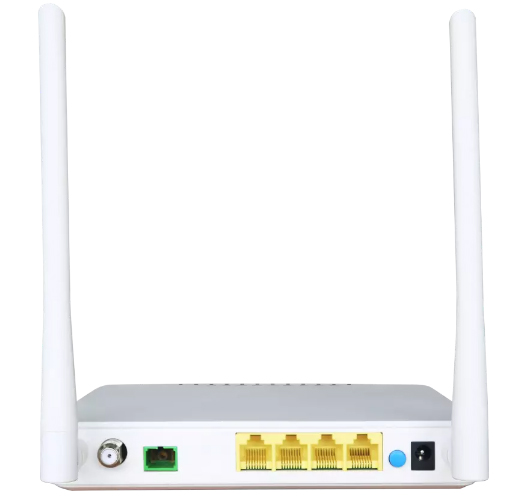

  single fibe 4GE CATV Wifi EPON ONU

It is fiber to the home multi service access EPON ONU. It’s based on the mature, stable, high cost performance EPON technology and has gigabit Ethernet switching, WDM and HFC technology. It has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the IEEE802.3ah requirements and have good compatibility with third party manufacturers OLT. It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm. It only needs one-core fiber to transmit data and CATV service.

It can integration wireless function with meet 802.11 n/b/g technical standards. It has two outer high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

Support port-based rate limitation and bandwidth control
In compliant with ITU-T G. 984 Standard
Wi-Fi series meet 802.11 n/b/g technical standards
Support data encryption, group broadcasting, port Vlan separation, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software
Support port mode of VLAN configuration
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support port flow control
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
EMS network management based on SNMP, convenient for maintenance
.


.
.










Specification




Item

Parameter

PON Interface

1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC/APC single-mode fiber
split ratio: 1:64
Transmission distance 20KM

User Ethernet
Interface

4*10/100M or 4*10/100/1000M or 3*10/100M and 1*10/100/1000M auto-negotiation

Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

RF Interface

Female F-Type Connector

Power Interface

12V DC Power supply

PON

Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0~4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm

Data Transmission
Parameter

PON Throughput: Downstream 980Mbps; Upstream 950Mbps
Ethernet: 100Mbps or 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Business
Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG,VLAN translation

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support loop detection

Network
Management

Support IEEE802.3 QAM, ONU can be remotely managed by OLT

Support EMS management through OLT SNMP -agent and Telnet

Local management

Management
Function

Status monitor, Configuration management, Alarm management,
Log management

Shell

Plastic casing

Power

Power supply: 12V DC/1A

Power consumption:
4FE+WIFI+CATV:       <9W

1GE+3FE+WIFI+CATV   <9.25W
4GE+WIFI+CATV:       <10W

Physical
Specifications

Item Dimension:170mm(L)*130mm(W)*30mm(H)

Item weight:0.3kg

Environmental
Specifications

Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)

 CATV

Item

Parameter

Wavelength

1550nm

Optical return loss

>45dB

Input optical power

-18dBm~0dBm

RF frequency

47MHz~1000MHz

RF output lever

78dBuV (@-12~-2dBm@85MHz)

CNR

>41dB (@-10dBm@DS22 Channel)

CSO

>60dBc (@-10dBm@DS22 Channel)

CTB

>60dBc (@-10dBm@DS22 Channel)

RF output return loss

>12dB

RF impedance

75Ω

AGC function

Support
















Solutions





.

Model

  single fibe 4GE CATV Wifi EPON ONU



single fibe 4GE CATV Wifi EPON ONU
